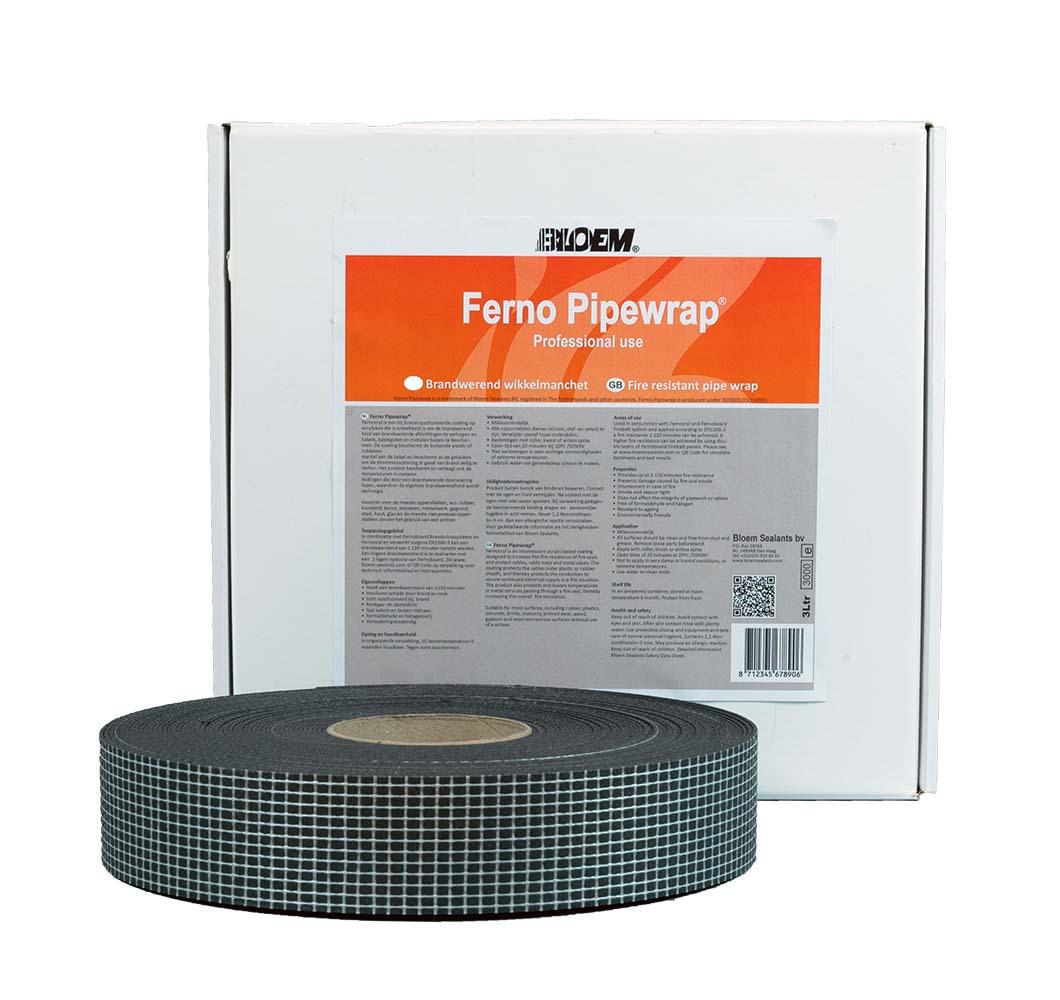

Ferno Pipewrap

Ferno PipeWrap is an intumescent wrap used for smoke and fire sealing of combustible pipes in fire-resistant walls, floors, and Fernoboard. Ferno PipeWrap is supplied in rolls and should be wrapped around the pipe in multiple layers before being inserted into the wall. In case of a fire, the graphitebased strip will rapidly expand, providing smoke and fire resistance for up to 240 minutes.
Add to wishlist

Properties

  • Ferno Pipewrap provides up to 240 minutes of fire resistance in terms of integrity and insulation (EI240).
  • Delivery on roll makes it suitable for most pipe sizes.
  • Easy to install without anchors or drilling.
  • Suitable for plastic pipes and metal pipes with combustible insulation.
  • Supplied on 25-meter rolls, to be cut on site.
  • CE certified
  • Tested on plastic pipes up to Ø 400 mm.
  • Tested and certified for U/U pipe end applications.
  • High sound insulation
  • Maintenance-free

Applications

  • Flexible walls
  • Rigid walls and floors
  • Standard plastic pipes up to Ø 400 mm made of PVC-C, PVC-U, PP, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC
  • Plastic pipes and cables
  • Insulated metal pipes
  • Can be used in combination with the Fernoboard system

Testing / Certificates

  • Tested according to NEN 6069 and EU Standard
  • EN 1366-3, ETA 22/0707
  • CE Certificate No. 2531-CPR-CXO10395
  • Certification according to EAD 350454-00-1104

Technical data

Product: Fire-resistant wrap
Classification: Up to E240, EI240*
Processing temperature: +5°C to +30°C (Fernocryl)
Expansion coefficient: 1 : 25
Sound insulation: Rw 52dB (with Fernoboard)
*For achieved fire resistance per application, see test report (ETA 22/0707)

Colour
Grey

Packaging
50 mm width: in boxes of 25 meters
75 mm width: in boxes of 25 meters

Storage and shelf life
Fernowrap should be stored in a dry place between +5°C and +25°C. There is no maximum shelf life.

Downloads

Technical datasheet
